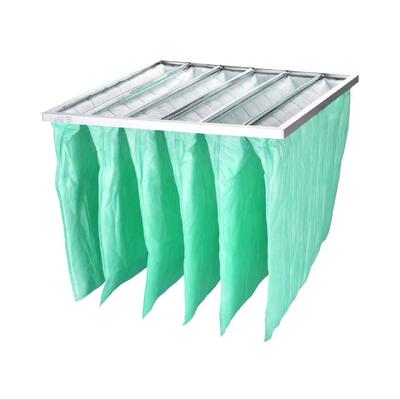

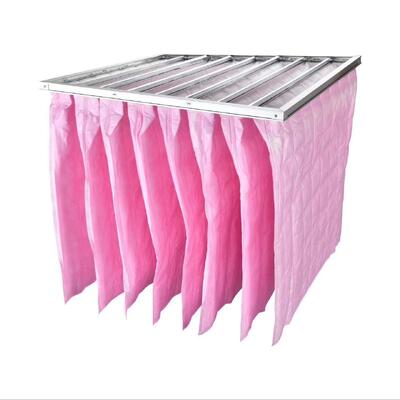

Top Ranking Dust Collector Pocket Air Filter for Demanding Industrial Applications
| Minimum Order Quantity | 100 |
|---|---|
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
Product Details
Product Description
Product Feature
Product Characteristics
Optional galvanized frame, one-piece molded aluminum frame, or external clip aluminum frame
Premium synthetic fiber filter media with various formulation options
U-shaped pressure strips secure filter bags to the inner frame
Ultrasonic seamless welding of filter bags with reinforced grids dividing bags into uniform horizontal airflow channels
Filter media bonded and fixed to the frame
Premium synthetic fiber filter media with various formulation options
U-shaped pressure strips secure filter bags to the inner frame
Ultrasonic seamless welding of filter bags with reinforced grids dividing bags into uniform horizontal airflow channels
Filter media bonded and fixed to the frame
Product Advantage
Sturdy and reliable structure
High air volume, low resistance, high dust holding capacity
Easy to install and safe to operate
Synthetic fiber media heat resistant up to 70°C, fiberglass media heat resistant up to 150°C
High air volume, low resistance, high dust holding capacity
Easy to install and safe to operate
Synthetic fiber media heat resistant up to 70°C, fiberglass media heat resistant up to 150°C
Product Benefit
Low resistance, high dust holding capacity, long service life, low energy consumption
Lightweight and easy to install
Lightweight and easy to install
Product Application
Pre-filtration in HVAC and ventilation systems to prevent internal dust accumulation and contamination
Pre-filtration for large air compressors
Central ventilation and air conditioning systems in cleanrooms, and return air filtration to extend the service life of downstream high-efficiency filters
Ventilation systems in general industrial plants to meet basic air cleanliness requirements
Coarse dust filtration systems in general building air conditioning systems
Pre-filtration for large air compressors
Central ventilation and air conditioning systems in cleanrooms, and return air filtration to extend the service life of downstream high-efficiency filters
Ventilation systems in general industrial plants to meet basic air cleanliness requirements
Coarse dust filtration systems in general building air conditioning systems
|
Outer Frame
|
Aluminum Alloy, Galvanized Steel, Aluminum, Stainless Steel
|
|
Filter Media
|
Non-woven Fabric, Activated Carbon Cotton, Fiberglass
|
|
Inner Frame
|
Galvanized Steel, Stainless Steel
|
|
Pressure Strip
|
Galvanized Steel, Aluminum 201
|
|
Aluminum Profile Thickness Options
|
21, 25
|
|
Operating Temperature
|
Normal Temperature (Fiberglass is Heat Resistant)
|
|
Operating Humidity
|
≤100%
|
|

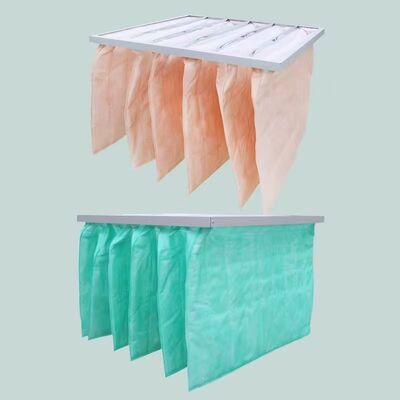

Color Options
|
White, Light Yellow, Orange Red, Purple, Dark Yellow
|
|
Note: Optional copper-zinc controlled materials available for battery industry applications.
|
|
Technical Indicators
|
Model
|
Nominal Size (Inch) (W×H×D)
|
Actual Size (mm) (W×H×D)
|
Pocket Count
|
Rated Air Flow (m³/h)
|
|
UT21-592*592*635*8P-GX-GIAOALP2-ST
|
24*24*25
|
592*592*635
|
8
|
3400
|
|
UT21-490*592*635*6P-GX-GIAOALP2-ST
|
20*24*25
|
490*592*635
|
6
|
2850
|
|
UT21-490*490*635*5P-GX-GIAOALP2-ST
|
20*20*25
|
490*490*635
|
5
|
2300
|
|
UT21-287*592*635*4P-GX-GIAOALP2-ST
|
12*24*25
|
287*592*635
|
4
|
1700
|
|
UT21-592*592*550*8P-GX-GIAOALP2-ST
|
24*24*22
|
592*592*550
|
8
|
3400
|
|
UT21-490*592*550*6P-GX-GIAOALP2-ST
|
20*24*22
|
490*592*550
|
6
|
2850
|
|
UT21-490*490*550*5P-GX-GIAOALP2-ST
|
20*20*22
|
490*490*550
|
5
|
2300
|
|
UT21-287*592*550*4P-GX-GIAOALP2-ST
|
12*24*22
|
287*592*550
|
4
|
1700
|
|
UT21-592*592*381*8P-GX-GIAOALP2-ST
|
24*24*15
|
592*592*381
|
8
|
2300
|
|
UT21-490*592*381*6P-GX-GIAOALP2-ST
|
20*24*15
|
490*592*381
|
6
|
2850
|
|
UT21-490*490*381*5P-GX-GIAOALP2-ST
|
20*20*15
|
490*490*381
|
5
|
2300
|
|
UT21-287*592*381*4P-GX-GIAOALP2-ST
|
12*24*15
|
287*592*381
|
4
|
1700
|
|
Note: Other sizes can be customized according to customer requirements.
Dimensional Tolerance: W, H: ±3mm, D: ±2mm, Diagonal: ±3mm |
||||
|
Model
|
Rated Initial Pressure Drop (Pa)
|
Final Pressure Drop
|
|||||||
|
G3
|
G4
|
F5
|
F6
|
F7
|
F8
|
F9
|
G3&G4
|
F5-F9
|
|
|
UT21-592*592*635*8P-GX-GIAOALP2-ST
|
35
|
43
|
53
|
56
|
88
|
93
|
123
|
250
|
450
|
|
UT21-490*592*635*6P-GX-GIAOALP2-ST
|
35
|
43
|
53
|
56
|
88
|
93
|
123
|
250
|
450
|
|
UT21-490*490*635*5P-GX-GIAOALP2-ST
|
36
|
45
|
53
|
56
|
88
|
93
|
123
|
250
|
450
|
|
UT21-287*592*635*4P-GX-GIAOALP2-ST
|
36
|
46
|
53
|
56
|
88
|
93
|
123
|
250
|
450
|
|
UT21-592*592*550*8P-GX-GIAOALP2-ST
|
38
|
47
|
58
|
63
|
98
|
113
|
133
|
250
|
450
|
|
UT21-490*592*550*6P-GX-GIAOALP2-ST
|
38
|
47
|
58
|
63
|
98
|
113
|
133
|
250
|
450
|
|
UT21-490*490*550*5P-GX-GIAOALP2-ST
|
40
|
48
|
58
|
63
|
98
|
113
|
133
|
250
|
450
|
|
UT21-287*592*550*4P-GX-GIAOALP2-ST
|
40
|
48
|
58
|
63
|
98
|
113
|
133
|
250
|
450
|
|
UT21-592*592*381*8P-GX-GIAOALP2-ST
|
43
|
56
|
68
|
73
|
108
|
118
|
143
|
250
|
450
|
|
UT21-490*592*381*6P-GX-GIAOALP2-ST
|
44
|
58
|
68
|
73
|
108
|
118
|
143
|
250
|
450
|
|
UT21-490*490*381*5P-GX-GIAOALP2-ST
|
44
|
58
|
68
|
73
|
108
|
118
|
143
|
250
|
450
|
|
UT21-287*592*381*4P-GX-GIAOALP2-ST
|
44
|
58
|
68
|
73
|
108
|
118
|
143
|
250
|
450
|
